Products

Product range and capacities

Regular production: module 1–14, table diameter 5–1500 mm. Material and heat treatment as specified on the drawing.

Worm sets · to drawing

1–14Module range

5–1500 mmTable diameter

2000 mmStraight racks

To drawingCustom manufacture

Gears

To Ø 1500 mm

Spur gears & pinions

Straight-tooth gears and pinions for power transmission. Keyway, spline or plain bore as drawn.

Enquiry

To Ø 1500 mm

Helical gears & pinions

Helix angle to requirement. Used on parallel-shaft drives, printing machines and industrial gearboxes.

Enquiry

To Ø 450 mm

Internal / ring gears

Internal teeth, including flanged rings for bolting to a hub or housing.

Enquiry

Shaft Ø 200 · wheel Ø 1500

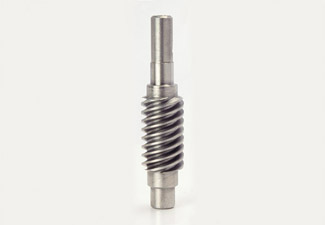

Worm shafts & wheels

Single and multi-start worms. Matching wheels, including bronze wheels where specified.

Enquiry

Within 1500 mm table

Heavy-duty gears

Larger industrial gears for cement, sugar, cranes and similar plant.

Enquiry

As specified

Pump gears

Pump gears in the materials called for on the job.

Enquiry

Shafts, racks & sprockets

To Ø 800 mm

Sprocket wheels

Roller-chain sprockets, bore and hub to drawing.

Enquiry

Straight, to 2000 mm

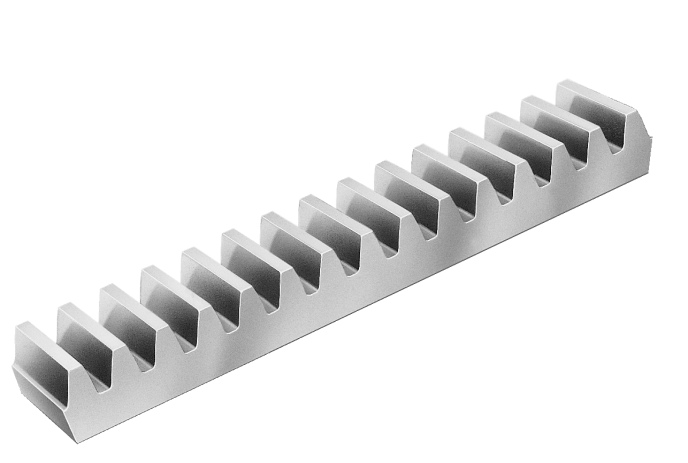

Gear racks

Straight racks for rack-and-pinion travel. Length and module to specification.

Enquiry

Internal and external

Spline & serrated shafts

Multiple-spline shafts, involute profiles and serrated shafts.

Enquiry

Gearboxes

Worm · helical · crane-duty

Reduction gearboxes

Right-angle worm, double-reduction worm, helical and crane-duty helical gearboxes. State input, ratio and duty.

Enquiry

To drawing

Custom shafts

Stepped and custom shafts manufactured with the gearbox or as loose parts.

Enquiry

Outside this range? Send the drawing anyway.

We will confirm whether the job fits the machines.

Enquiry
